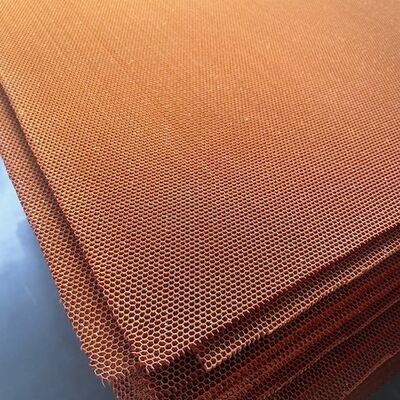

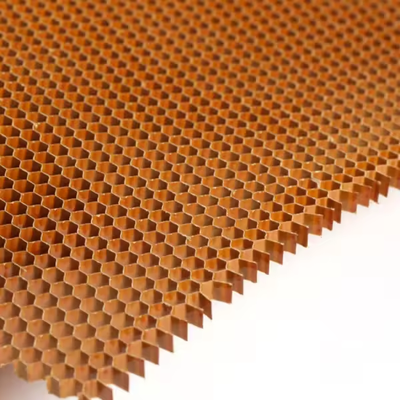

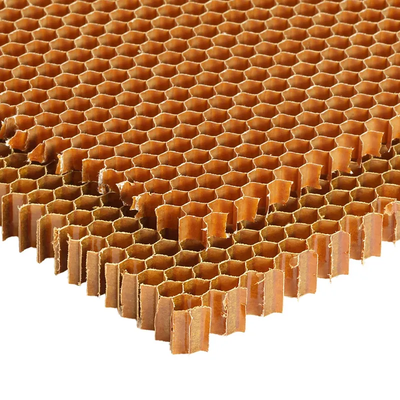

3.2mm Cell Size 48 Density Aramid Honeycomb Core
High-strength aramid honeycomb core material specifically engineered for radar radomes and aerospace applications.
Product Overview
Honeycomb core is a high-density material used as the core material for sandwich structures. Manufactured from aramid fiber paper impregnated with resin (approximately 50% resin content), these hexagonal cell structures provide exceptional strength-to-weight ratios. The shear strength along the L direction is approximately twice that of the W direction. Primary applications include aircraft radomes, radar domes, aircraft flooring, and rudder systems.
Technical Specifications
| Specifications |
Cell Size (mm/inch) |
Density (kg/m³) |
Compression Strength (MPa) |
L-Shear Strength (MPa) |
W-Shear Strength (MPa) |
| Commercial Grade Aramid Honeycomb Core |
| BHC1313-3.2-48 | 3.2 | 1/8 | 48 | 1.9 | 1.16 | 0.62 |
| BHC1313-3.2-64 | 3.2 | 64 | 3.1 | 1.48 | 0.82 |
| BHC1313-3.2-80 | 3.2 | 80 | 4.7 | 1.95 | 1.05 |
| BHC1313-3.2-96 | 3.2 | 96 | 6.6 | 2.45 | 1.42 |
| BHC1313-4.8-32 | 4.8 | 3/16 | 32 | 0.9 | 0.58 | 0.36 |
| BHC1313-4.8-48 | 4.8 | 48 | 2.6 | 0.98 | 0.56 |
| BHC1313-4.8-64 | 4.8 | 64 | 3.4 | 1.7 | 0.92 |
| BHC1313-4.8-80 | 4.8 | 80 | 6 | 1.95 | 1.1 |
| BHC1313-4.8-96 | 4.8 | 96 | 7.3 | 2.26 | 1.32 |
| BHC1313-6.4-24 | 6.4 | 1/4 | 24 | 0.54 | 0.34 | 0.18 |
| BHC1313-6.4-32 | 6.4 | 32 | 0.8 | 0.54 | 0.3 |
| BHC1313-6.4-48 | 6.4 | 48 | 2.05 | 1 | 0.56 |
| BHC1313-6.4-64 | 6.4 | 64 | 3.4 | 1.54 | 0.79 |
| BHC1313-9.5-24 | 9.5 | 3/8 | 24 | 0.52 | 0.32 | 0.16 |
| BHC1313-9.5-32 | 9.5 | 32 | 0.68 | 0.56 | 0.29 |
| BHC1313-9.5-48 | 9.5 | 48 | 9.6 | 1.15 | 0.66 |
| Aerospace Grade Aramid Honeycomb Core |
| BHC1313A-3.2-48 | 3.2 | 1/8 | 48 | 2 | 1.26 | 0.72 |
| BHC1313A-3.2-64 | 3.2 | 64 | 3.2 | 1.58 | 0.92 |
| BHC1313A-3.2-80 | 3.2 | 80 | 4.8 | 2.05 | 1.15 |
| BHC1313A-3.2-96 | 3.2 | 96 | 6.7 | 2.55 | 1.52 |
| BHC1313A-3.2-128 | 3.2 | 128 | 11.4 | 3.05 | 1.88 |
| BHC1313A-3.2-144 | 3.2 | 144 | 13.3 | 3.15 | 2 |
| BHC1313A-4.8-32 | 4.8 | 3/16 | 32 | 1 | 0.68 | 0.46 |
| BHC1313A-4.8-48 | 4.8 | 48 | 2.7 | 1.08 | 0.66 |
| BHC1313A-6.4-48 | 6.4 | 1/4 | 48 | 2.15 | 1.1 | 0.66 |
| BHC1313A-9.5-48 | 9.5 | 3/8 | 48 | 9.7 | 1.25 | 0.76 |
Key Advantages
- Super lightweight with high strength and anti-fatigue properties
- Outstanding corrosion resistance and flame resistance
- Excellent environmental adaptability and electrical insulation
- Superior dielectric properties and high dimensional stability
Applications
Rail transit, aerospace, radomes, yachts, sports equipment, automotive, and various industrial applications.
Quality Control
Our technical engineering team is led by a general manager with extensive experience from the Netherlands. Core technologies are imported from Dutch expertise, while our young, dynamic team members each possess over 5 years of practical experience. Our strict quality control team consists of 8 professionals dedicated to monitoring aramid honeycomb core quality throughout part manufacturing, processing, testing, and packaging.
Company Profile
Suzhou Beecore Honeycomb Materials Co. Ltd originated from Besin (Dutch) International Group, founded in 1957. As a world-leading professional manufacturer of honeycomb materials, we have consistently focused on honeycomb technology research and development. Our product range includes slant-porous aluminum honeycomb core, honeycomb core, honeycomb panels, and finished products utilizing honeycomb panel solutions such as truck bodies and laser TV/projection screens.
Factory Overview
Frequently Asked Questions
What is aramid honeycomb sheet used for?
Aramid honeycomb core is one of the best EMI materials available, suitable for both industrial and aviation applications. It is widely used in rail transit, aerospace, radomes, yachts, sports equipment, automotive, and various other industries.
What are the advantages of aramid honeycomb sheet?
Aramid honeycomb core offers superior lightweight properties with high strength and anti-fatigue characteristics, outstanding corrosion and flame resistance, excellent environmental adaptability and electrical insulation, along with good dielectric properties and high stability.
What is the packaging method of aramid honeycomb sheet?
Small samples of aramid honeycomb core are packaged in cardboard, while bulk orders are securely packed in plywood cases to ensure product integrity during transportation.
